PRISM - Script

Client Side

Using ”frappe.call” with Various Built-in Methods

Using `frappe.call` in Frappe Javascript

Used to call backend (Python) methods from frontend (JavaScript)
Commonly used for accessing and updating data from the doctypes.

Command Syntax

frappe.call({
    method: "<method_path>",
    args: {
        <arg_key>: <arg_value>
    },
    callback: function(ldResponse) {
        console.log(ldResponse.message);
    }
})

Using the frappe.client.get method with `frappe.call` – Fetch Full Document

Used to get a complete document using its name.
Helpful when you need all fields including child tables

Command Syntax

frappe.call({
    method: "frappe.client.get",
    args: {
        doctype: "<doctype_name>",
        name: "<doctype_id>"
    },
    callback: function(r) {
        console.log(r.message);
    }
});

Parameters & Options

Parameter	Type	Description
`doctype`	string	Doctype Name (“Sales Order”)
`name`	string	Document ID (“SAL-ORD-2025-00015”)

Common Patterns or Use Cases

frappe.call({
    method: "frappe.client.get",
    args: {
        doctype: "Sales Order",
        name: "SAL-ORD-2025-00015"
    },
    callback: function(ldResponse) {
        if(ldResponse.message) {
            const ldDoc = ldResponse.message;
            console.log("Customer:", ldDococ.customer);
            console.log("Status:", ldDoc.status);
            console.log("Items:", ldDoc.items);
        }
    }
});

Sample Output :

{
    "name": "SAL-ORD-2025-00015",
    "customer": "ABB AG",
    "status": "To Deliver",
    "items": [
        {
            "item_code": "DTTHZ2N 1200/10/400/6/75",
            "qty": 1,
            "rate": 10000
        }
    ]
}

Using `frappe.client.get_list` with `frappe.call` – Fetch Filtered List of Documents with Specific Fields

frappe.client.get_list is used to retrieve a list of documents from a specific Doctype based on filters.
You can specify which fields to return and which records to include using filters.

Command Syntax

frappe.call({
    method: "frappe.client.get_list",
    args: {
        doctype: "<doctype_name>",
        filters: { <field_name>: <value> },
        fields: ["<field_name1>", "<field_name2>"]
    },
    callback: function(r) {
        console.log(r.message);
    }
});

Parameters & Options

Parameter	Type	Description
`doctype`	string	Doctype (e.g., `"Sales Order"`)
`filters`	object	Conditions to filter documents (e.g., `{ "status": "Draft" }`)
`fields`	array	Specific fields to return from the matching documents (e.g., `["name", "customer_name"]`)

Common Patterns or Use Cases

frappe.call({
    method: "frappe.client.get_list",
    args: {
        doctype: "Sales Order",
        filters: { "name": "SAL-ORD-2025-00015" },
        fields: ["customer_name"]
    },
    callback: function(ldResponse) {
        if (ldResponse.message) {
            const lCustomer = ldResponse.message;
            console.log("Customer:", lCustomer);
        }
    }
});

Sample Output :

Customer: [{ customer_name: "Global" }]

Using the frappe.client.get_value method with `frappe.call` – Fetch Specific field

Used to retrieve only selected fields
Lightweight and faster for quick lookups

Command Syntax

frappe.call({
    method: "frappe.client.get_value",
    args: {
        doctype: "<doctype_name>",
        filters: { name: "<doctype_id>" },
        fieldname: ["<field_1>", "<field_2>"]
    },
    callback: function(ldResponse) {
        console.log(ldResponse.message);
    }
});

Parameters & Options

Parameter	Type	Description
`doctype`	string	Doctype Name (“Sales Order”)
`filters`	object	Field-value pairs
`fields`	string/array	One or More fields

Common Patterns or Use Cases

Fetching only specific fields (e.g. customer, transaction_date)

frappe.call({
    method: "frappe.client.get_value",
    args: {
        doctype: "Sales Order",
        filters: { name: "SAL-ORD-2025-00015" }
        fieldname: ["customer", "transaction_date"]
    },
    callback: function(ldResponse) {
        if(ldResponse.message) {
            const ldDoc = ldResponse.message;
            console.log("Customer:", ldDococ.customer);
            console.log("Transaction Date:", ldDoc.transaction_date);
        }
    }
});

Sample Output :

{
    "customer": "ABB AG",
    "transaction_date": "2025-05-28"
}

Using the frappe.db.get_value method – Fetch Specific Field(s) without fetching full document

Used to retrieve only selected fields from a document.
Lightweight and faster for quick lookups

Command Syntax

frappe.db.get_value(doctype, filters, fieldname, callback);

Parameters & Options

Parameter	Type	Description
`doctype`	string	Doctype Name (“Sales Order”)
`filters`	object	Field-value pairs
`fields`	string/array	One or More fields
`callback`	function	process the response

Common Patterns or Use Cases

Fetching only specific fields (e.g. customer, transaction_date)

frappe.db.get_value(
    "Sales Order",
    { name: "SAL-ORD-2025-00015" },
    ["customer", "transaction_date"],
    function(ldResponse) {
        if (ldResponse.message) {
            const ldDoc = ldResponse.message;
            console.log("Customer:", ldDoc.customer);
            console.log("Transaction Date:", ldDoc.transaction_date);
        }
    }
);

Sample Output :

{
    "customer": "ABB AG",
    "transaction_date": "2025-05-28"
}

Using `frm.call` – Call Server-Side API Method from Client-Side

Used to call a Python API method from the client-side script.
Allows real-time interaction with backend logic, fetching data, or performing operations.

Command Syntax

frm.call({
    method: "method.path", //api name: get_quote_from_salesorder
    args: {
        key1: value1,
        key2: value2
    },
    callback: function(ldResponse) {
        // handle response
    }
});

Parameters & Options

Parameter	Type	Description
`method`	string	API method name (server-side script)
`args`	object	Arguments as key-value pairs
`callback`	function	response is received from the server

Common Patterns or Use Cases

frm.call({
    method: "get_quote_from_salesorder", // API method name
    args: {
        source_name: frm.doc.name
    },
    callback: function(ldResponse) {
        if (ldResponse.message) {
            //code here
        }
    }
});

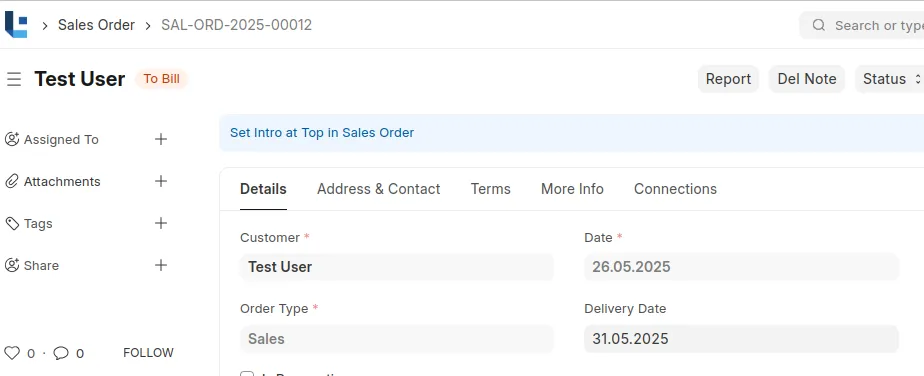

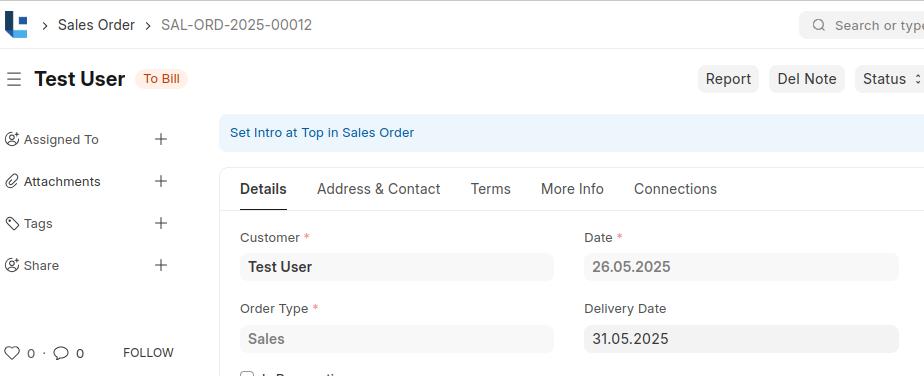

Using frappe.set_intro – Display an Introductory Message in a Form

Shows a small descriptive message at the top of the form.
Helps provide guidance or context to users filling the form.

Command Syntax

frappe.set_intro(message);

Parameters & Options

Parameter	Type	Description
message	string	Displaying text

Common Patterns or Use Cases

frappe.ui.form.on('Sales Order', {
    onload: function(frm) {
        frm.set_intro("Set Intro at Top in Sales Order");
    }
});

Sample Output : alt text

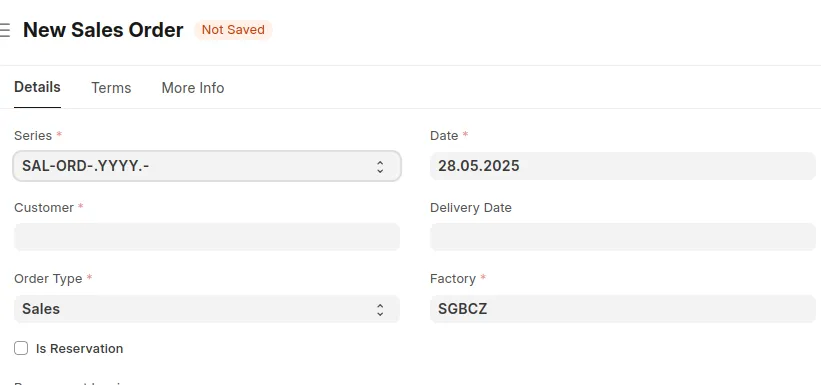

Using frappe.df.set_property – Set Properties Dynamically on DocField in a Form

Modify field properties such as reqd (mandatory), read_only, hidden, etc., dynamically.

Command Syntax

frappe.df.set_property(fieldname, property, value, frm);

Parameters & Options

Parameter	Type	Description
fieldname	string	Fieldname
property	string	Property to set (e.g., “reqd”, “hidden”)
value	boolean	0 or 1
frm	object	Form object (usually passed as frm)

Common Patterns or Use Cases

frappe.ui.form.on('Sales Order', {
    onload: function(frm) {
        if (frm.doc.custom_factory === 'SGBCZ') {
            frm.set_df_property('custom_factory', 'reqd', 1);
        } else {
            frm.set_df_property('custom_factory', 'reqd', 0);
        }
    }
});

Sample Output : alt text

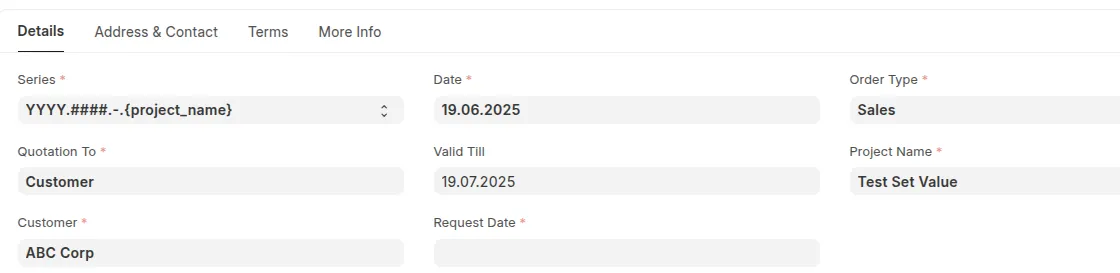

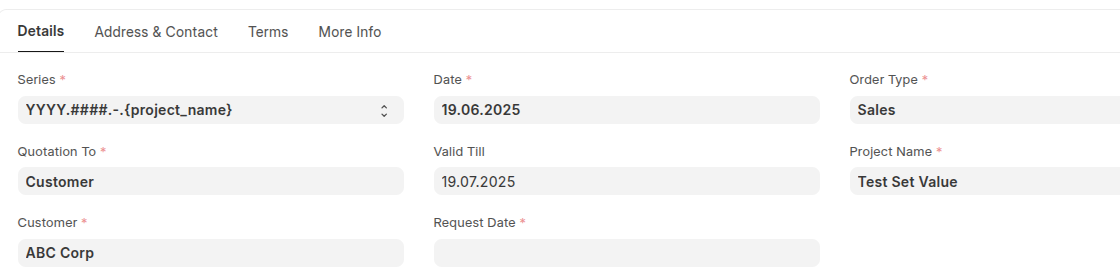

Using `frm.set_value` – Set a Field Value in the Form

Used to set or update the value of a field programmatically.
Triggers related events like on_change, validation, and linked field logic.

Command Syntax

frm.set_value(fieldname, value);

frm.set_value({
    fieldname1: value1,
    fieldname2: value2
});

Parameters & Options

Parameter	Type	Description
fieldname	string	Name of the field to update
value	any	New value to set for the field

Common Patterns or Use Cases

frappe.ui.form.on('Quotation', {
    refresh: function(frm) {
        frm.set_value('project_name', 'Test Set Value');
        //or
        frm.set_value({
            party_name: "ABC Corp",
            company: "LMNAs Cloud Solutions" //hidden field
        });
    }
});

Sample Output : alt text

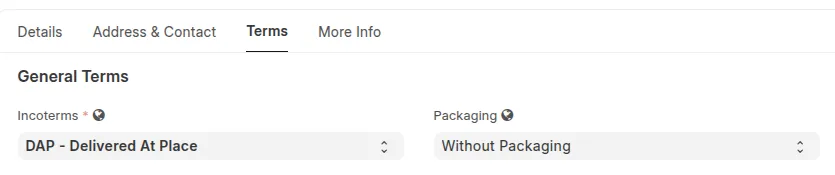

Using `add_fetch` – Auto Fetch Field Value from Linked Doctype

Automatically pulls a value from a linked document’s field and sets it in the current form.
Used in frappe.ui.form.on() to map one field to another when a link field is selected.

Command Syntax

frm.add_fetch(link_field, source_fieldname, target_fieldname);

Parameters & Options

Parameter	Type	Description
link_field	string	Link field in the form
source_fieldname	string	Field to fetch from the linked doctype
target_fieldname	string	Field in the current form to set the value

Common Patterns or Use Cases

frappe.ui.form.on('Quotation', {
    customer(frm) {
        frm.add_fetch('party_name', 'll_packaging', 'packaging');
    }
});

Sample Output : alt text

Using `get_query` – Filter Link Field Options Dynamically (Field-Level)

Used to define dynamic filters for Link fields at the field level.
Placed inside frappe.ui.form.on() for the specific field.
Returns filter conditions for dropdown value

Common Syntax

frm.fields_dict[fieldname].get_query = function(doc) {
    return {
        filters: {
            key: value
        }
    };
};

Parameters & Options

Parameter	Type	Description
fieldname	string	Name of the Link field to filter
doc	object	Current form document context (frm.doc)
filters	object	Key-value pairs used to filter link options

Common Patterns or Use Cases

frm.fields_dict['item_code'].get_query = function(doc) {
    return {
        filters: {
            item_group: doc.item_group //item_group: 'DTTHZ2N'
        }
    };
};

Using `set_query` – Filter Link Field Options Dynamically (Global or Field-Level)

Used to apply dynamic filters to Link fields.
Can be used for fields in the main form or in child tables.
More flexible than get_query.

Common Syntax

frm.set_query(fieldname, doctype, function(doc) {
    return {
        filters: {
            key: value
        }
    };
});

Common Patterns or Use Cases

# Syntax for Parent form field
frappe.ui.form.on('Sales Order', {
    setup: function(frm) {
        frm.set_query('customer', null, function(doc) {
            return {
                filters: {
                    customer_group: 'Commercial'
                }
            };
        });
    }
});

// Syntax for Child form field
frappe.ui.form.on('Sales Order', {
    setup: function(frm) {
        frm.set_query('item_code', 'items', function(doc) {
            return {
                filters: {
                    item_group: 'DTTHZ2N'
                }
            };
        });
    }
});

Best Practice

Use set_query in the setup event.
Use get_query only if you want to write the filter directly on the field.
Avoid hardcoding values unless they are fixed.

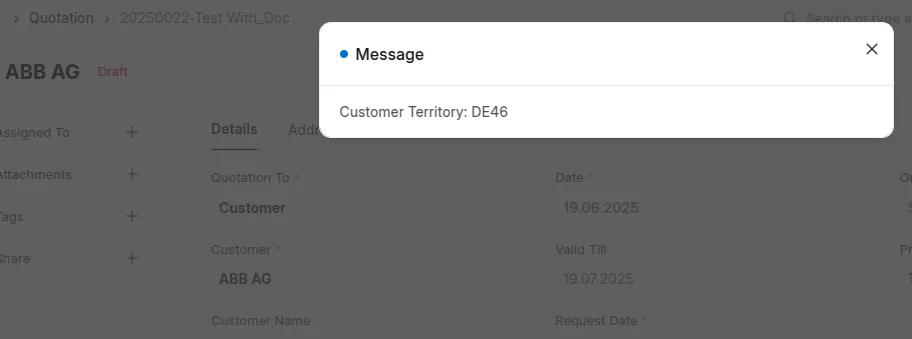

Using `frappe.model.with_doc` – Access a Full Document in the Client Script

frappe.model.with_doc is used to fetch and access the complete document from the database by specifying its doctype and name.
Useful when you want to use values from another document that is not currently open in the form.

Command Syntax

frappe.model.with_doc(doctype, name).then(doc => {
    // code here
});

Parameters & Options

Parameter	Type	Description
doctype	string	Name of the Doctype to fetch
name	string	The unique name (ID) of the document

Common Patterns or Use Cases

frappe.ui.form.on('Quotation', {
    onload: function(frm) {
        if (frm.doc.party_name) {
            frappe.model.with_doc('Customer', frm.doc.party_name).then(ldCustomerDoc => {
                frappe.msgprint(`Customer Territory: ${ldCustomerDoc.territory}`);
            });
        }
    }
});

Sample Output : alt text

Using `frappe.model.set_value` – Set the Value of a Field in a Child Doctype Row

Sets or updates the value of a specific field in a child table row.
Useful for dynamically updating fields inside child tables based on conditions or user input.

Command Syntax

frappe.model.set_value(doctype, docname, fieldname, value);

Parameters & Options

Parameter	Type	Description
doctype	string	Name of the Child DocType
docname	string	Name of the child document (child row)
fieldname	string	Field name whose value you want to set
value	any	The value to set for the field

Common Patterns or Use Cases

frappe.ui.form.on('Sales Order', {
    refresh: function(frm) {
        // Set the 'status' field to 'Draft' on form refresh
        frappe.model.set_value(frm.doc.doctype, frm.doc.name, 'status', 'Draft');

        // Set rate of first item in items table to 1000
        if (frm.doc.items && frm.doc.items.length > 0) {
            let ld_first_item = frm.doc.items[0];
            frappe.model.set_value(ld_first_item.doctype, ld_first_item.name, 'rate', 1000);
        }
    }
});

Using HTML Templates in JavaScript – Render Dynamic HTML with JS

Helps inject structured HTML layouts (like tables, cards, alerts) dynamically in Frappe forms or pages.
Useful for rendering data-driven UI like logs, summaries, or visual indicators.

Pre-requiste You need to have a field of type HTML

Command Syntax

const ldTemplate = `<div>...</div>`;
frappe.render_template(ldTemplate, { key: value });

Parameters & Options

Parameter	Type	Description
`template`	`string`	Inline HTML template string using Jinja-style tags
`key`	`string`	Name of the param object used in the template
`value`	`object`	Context variables used for rendering the template (parameter used in the jinja)

Notes & Best Practices

Frappe uses a microtemplate engine, not full Jinja — it’s based on John Resig’s lightweight JavaScript templating system, commonly referred to as Resig-style templates.
Loops and variables must follow Frappe’s JS microtemplate syntax:
- Use {% for(var i = 0; i < array.length; i++) { %} for loops
- Use {%= array[i].field %} to render values
Standard Jinja syntax like {% for item in items %} is not supported in client scripts and will not work.
Avoid using single quotes ' inside the HTML template string — always use double quotes " to avoid syntax issues.

It’s best practice to set rendered HTML using:

frm.set_df_property("fieldname", "options", html);
frm.refresh_field("fieldname");

Common Patterns or Use Cases

Show a visual summary of lead or opportunity status transitions (e.g., Open → Contacted → Quoted), helping users quickly understand progress.

frappe.ui.form.on('Lead', {
    onload(frm) {
        const laStatusLog = [
            {
                status_from: "Open",
                status_to: "Contacted",
                timestamp: "2025-06-01 10:00:00",
                duration: "2 days"
            },
            {
                status_from: "Contacted",
                status_to: "Quoted",
                timestamp: "2025-06-03 15:30:00",
                duration: "1 day 5 hrs"
            }
        ];

        const ldTimelineTemplate = `
           <div class="form-grid-container">
            <div class="form-grid">
                <div class="grid-heading-row">
                    <div class="grid-row">
                        <div class="data-row row">
                            <div class="col grid-static-col col-xs-3"><div class="static-area ellipsis">Status From</div></div>
                            <div class="col grid-static-col col-xs-3"><div class="static-area ellipsis">Status To</div></div>
                            <div class="col grid-static-col col-xs-3"><div class="static-area ellipsis">Timestamp</div></div>
                            <div class="col grid-static-col col-xs-3"><div class="static-area ellipsis">Time Difference</div></div>
                        </div>
                    </div>
                </div>
                <div class="grid-body">
                    <div class="rows">
                        {% for(var i = 0; i < status_log.length; i++) { %}
                            <div class="grid-row">
                                <div class="data-row row">
                                    <div class="col grid-static-col col-xs-3"><div class="static-area ellipsis">{%= status_log[i].status_from %}</div></div>
                                    <div class="col grid-static-col col-xs-3"><div class="static-area ellipsis">{%= status_log[i].status_to %}</div></div>
                                    <div class="col grid-static-col col-xs-3"><div class="static-area ellipsis">{%= status_log[i].timestamp %}</div></div>
                                    <div class="col grid-static-col col-xs-3"><div class="static-area ellipsis">{%= status_log[i].duration %}</div></div>
                                </div>
                            </div>
                        {% } %}
                        {% if (!status_log.length) { %}
                            <div class="grid-row">
                                <div class="data-row row">
                                    <div class="col text-muted" colspan="4">No status log found.</div>
                                </div>
                            </div>
                        {% } %}
                    </div>
                </div>
            </div>
        </div>
        `;

        const ldHtml = frappe.render_template(ldTimelineTemplate, { status_log: laStatusLog });
        frm.set_df_property("custom_html_field", "options", ldHtml )
        frm.refresh_field('custom_html_field');
    }
});

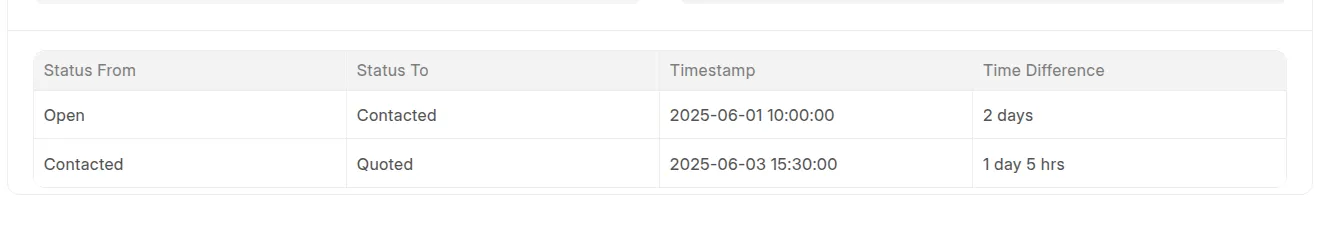

Sample Output : alt text

JavaScript Array Methods

1. forEach() – Loop through Sales Order Items

Description: Iterates over each item in the items array and performs an operation (e.g. log details or compute amount).

Common Syntax

laArray.forEach(function(ldItem, lIndex) {
    //code here
});

Parameters & Options:

Parameter	Type	Description
ldItem	object	current item from the array
lIndex	number	Index of the current item

Use Cases

A company sells equipment, and each item in a Sales Order Item has its qty. We want to calculate the total qty of all items and show it in a custom field total_qty on the Sales Order form.

We will use forEach() to iterate over the items table and add up the individual warranty months.

let lTotalQty = 0;

frm.doc.items.forEach(ldItem => {
    if (ldItem.qty) {
        lTotalQty = lTotalQty + ldItem.qty;
    }
});

// Set the total in a custom field on the main form
frm.set_value('total_qty', lTotalQty);

2. map() – Transform Sales Order Items

Description: Returns a new array by transforming each item in the list (e.g. extract item codes).

Common Syntax

const laResult = laArray.map(function(ldItem) {
    return transformedValue;
});

Parameters & Options:

Parameter	Type	Description
ldItem	object	current item from the array

Use Cases

You want to list all item_codes from the sales order to display in a summary section.

const LAitemCodes = salesOrder.items.map(function(ldItem) {
    return ldItem.item_code;
});
console.log("Item Codes:", LAitemCodes);

Sample Output

Item Codes: ["DTTHZ2N 1200/10/400/6/75", "DTTHZ2N 800/10/400/6/50"]

3.find() – Find First Matching Item

Description: Returns the first item that matches a condition (e.g. first bulk item).

Common Syntax:

const LAresult = laArray.find(function(ldItem) {
    return condition;
});

Parameters & Options:

Parameter	Type	Description
ldItem	object	current item from the array

Use Cases

A sales rep is creating a Sales Order. The system should check if a specific promotional item (e.g., item_code: “PROMO-123”) is included — to apply special pricing or show a reminder.

let lPromoItem = frm.doc.items.find(idItem => idItem.item_code === "PROMO-123");

if (lPromoItem) {
    frappe.msgprint("You’ve added the promotional item! Don’t forget to apply the special discount.");
}

Sample Output

A popup message displaying "You’ve added the promotional item! Don’t forget to apply the special discount."

4. filter() – Filter Matching Items

Description: Returns a new array with all items that match the condition (e.g. expensive items).

Common Syntax:

const LDresult = laArray.filter(function(ldItem) {
    return condition;
});

Parameters & Options:

Parameter	Type	Description
ldItem	object	current item from the array

Use Cases

You want to extract all items that belong to the item group “Transformers” to apply some logic — for example warranty rules.

let laTransformerItems = frm.doc.items.filter(item => item.item_group === 'Transformers');

// You can now use laTransformerItems for further logic
console.log("Transformer Items:", laTransformerItems);

laTransformerItems.forEach(ldItem => {
    ldItem.warranty_months = 24;  // Set a default warranty
});

5. reduce() – Calculate Total Value

Description: Reduces the array to a single value (e.g. total sales order amount).

Common Syntax:

const LDresult = laArray.reduce(function(lAccumulator, ldItem) {
    return updatedAccumulator;
}, lInitialValue);

Parameters & Options:

Parameter	Type	Description
lAccumulator	number	total/result
ldItem	object	Current item in the array
lInitialValue	number	Starting value (e.g. 0)

Use Cases

You want to calculate the total value of a Sales Order for quote submission.

//Calculate total amount of sales order
const LtotalAmount = salesOrder.items.reduce(function(lAcc, ldItem) {
    return lAcc + ldItem.qty * ldItem.rate;
}, 0);

console.log("Total Sales Order Amount:", LtotalAmount);

Sample Output:

Total Sales Order Amount: 27000

JavaScript Child Table

Accessing All Rows in a Child Table

Description: Access all rows (documents) inside the items child table.

Common Syntax

const laChildRows = frm.doc.items;
laChildRows.forEach(function(ldRow, lIndex) {
    // perform operations
});

Parameters & Options:

Parameter	Type	Description
laChildRows	array	Array of child table rows
ldRow	object	Current row in the child table
lIndex	number	Index of the current row

Common Patterns or Use Cases

frm.doc.items.forEach(function(ldRow, lIndex) {
    console.log(`Item ${lIndex + 1}:`, ldRow.item_code);
});

Sample Output:

Item 1: DTTHZ2N 1200/10/400/6/75 Item 2: DTTHZ2N 800/10/400/6/50

Adding a New Row to Child Table

Description: Programmatically adds a new row to the items table.

Common Syntax:

let lNewRow = frm.add_child("items");
lNewRow.item_code = "DTTHZ2N 2000/12/440/6/75";
frm.refresh_field("items");

Parameter	Type	Description
frm	object	Current form instance
lNewRow	object	Newly added child table row

Common Patterns or Use Cases

const lNewRow = frm.add_child("items");
lNewRow.item_code = "DTTHZ2N 2000/12/440/6/75";
lNewRow.qty = 2;
lNewRow.rate = 150;
frm.refresh_field("items");

Sample Output: A new row appears in the child table with DTTHZ2N 2000/12/440/6/75.

Accessing Specific Row by cdt and cdn

Use locals[cdt][cdn] to access or update a specific row in a child table — typically within child table event handlers like fielname, {fieldname}_add, etc.

Common Syntax

let lRow = locals[cdt][cdn];
console.log(lRow.item_code);

Parameter	Type	Description
cdt	string	Child Doctype
cdn	string	Unique row identifier
locals	object	Local model holding all doc data

Common Patterns or Use Cases

frappe.ui.form.on("Sales Order Item", {
    rate(frm, cdt, cdn) {
        let ldRow = locals[cdt][cdn];
        if (ldRow.qty === 0) {
            ldRow.qty = 1;
            frm.refresh_field("items"); //items is the field name of child table in parent doctype
        }
    }
});

Sample Output:

Row is updated to quantity 1.

Where This Is Applicable

Scenario	Use `cdt` & `cdn`?	Explanation
Inside `frappe.ui.form.on("Child Doctype", { ... })`	Yes	You get `cdt` & `cdn` as arguments to access the row
Inside `on_change`, `on_add`, `on_remove` for child table	Yes	Ideal for updating specific fields in the row
Inside parent Doctype events like `refresh`, `validate`	No	Use `frm.doc.items` instead (an array of rows)

Modifying Child Table Field Properties

Description: Dynamically change a child table column’s properties like reqd, hidden, or read_only.

Common Syntax

frm.fields_dict["items"].grid.update_docfield_property("item_code", "read_only", 1);
frm.fields_dict["items"].grid.refresh();

Parameter	Type	Description
item_code	string	Fieldname in the child table
read_only	string	Property to update
1 / 0	boolean	Value of the updated property

Common Patterns or Use Cases

frm.fields_dict["items"].grid.update_docfield_property("rate", "reqd", 1);
frm.fields_dict["items"].grid.refresh();

Sample Output:

The rate column in child table becomes mandatory.

Clear or Set Options in a Field in Child Table

Description: Clear or dynamically change dropdown options for a child table field.

Common Syntax

frappe.meta.get_docfield("Sales Order Item", "item_group", frm.docname).options = "";

Parameter	Type	Description
Sales Order Item	string	Child doctype name
item_group	string	Field in the child table
frm.docname	string	Name of the parent document

Common Patterns or Use Cases

frappe.meta.get_docfield("Sales Order Item", "item_group", frm.docname).options = "DTTH2n\nDOTML";
frm.fields_dict["items"].grid.refresh();

Sample Output:

Dropdown list for item_group is updated.

Get value of password field

When used get_value() for password field, the return value is asterisk(encrypted), so use get_password method to retrieve the actual value of password type field

Basic Syntax in client

frappe.call({
  "method": "frappe.client.get_password",
  "args":{
  "doctype": <doctype_name>
  "name": <document_name>
  "fieldName": <field_name>
  }
})

Common Use Cases

getting the open api key from raven settings doctype

frappe.call({
    "method": "frappe.client.get_password",
    "args":{
      "doctype": "Raven Settings,
      "name": "Raven Settings", //single doctype
      "fieldName": "openai_api_key"
   }
   "callback": function(idResponse){
     if(idResponse.message){
       console.log("open api key", idResponse.message)
     }
   }
})

Sample Output

open api key fhryryfhghgus8ghffgfhffjfjgjreg

Using `frappe.client.get_list` with `frappe.call` – For accessing the child table

Specify which fields to return
Select which records to include using filters

Command Syntax

frappe.call({
    method: 'frappe.client.get_list',
    args: {
        doctype: '<Child Table Doctype>',
        parent: '<Parent Doctype>',
        filters: { parent: '<Parent Document Name>' },
        fields: ['<Field1>', '<Field2>'] // specify fields you want to retrieve
    },
    callback: function(response) {
        // handle the response here
        console.log(response.message);
    }
});

Parameters & Options

Parameter	Type	Description
doctype	string	The Doctype to retrieve records from (e.g., `"Sales Order"`)
filters	object	Conditions to filter the records (e.g., `{ "status": "Draft" }`)
fields	array	List of fields to retrieve from each document (e.g., `["name", "status"]`)

Common Patterns or Use Cases for (Child Table)

Automatically fetch all organizations linked to that Git user.
Show them in a message or set them in another field.

 frappe.call({
    method: 'frappe.client.get_list',
    args: {
        doctype: 'Git User Organizations',  // Child Table Doctype
        parent: 'Git User',                 // Parent Doctype
        filters: { parent: frm.doc.custom_git_username },  // Parent Document Name
        fields: ['git_organization']        // Fields to Retrieve
    },
    callback: function(r) {
        if (r.message && r.message.length > 0) {
            // Example: Set the first organization name in a form field
            frm.set_value('organization_name', response.message[0].git_organization);
    }

    }
});

Server Side

frappe.get_doc in server side

Returns a document object for the given doctype and name, if no document match throw “DoesNotExistError”. Note: for single doctype, name is not required

Basic Syntax

frappe.get_doc(<doctype_name>, <document_name>)

Common Use Case

ld_task = frappe.get_doc("Task", "TASK-0023")
frappe.msgprint(str(ld_task.title)) //ex: title is Cpq Documentation

Sample Output

Cpq Documentation

For single doctype

ld_system_setting = frappe.get_doc("System Setting")
frappe.msgprint(str(ld_system_setting.theme)) //ex: theme is dark

Sample Output

dark

Using `frappe.get_all` – Fetch Multiple Records from a Doctype

Retrieves a list of records from a specific DocType.
Returns a list of dictionaries with selected fields (or just names if no fields specified).
Lightweight and efficient – ideal for read-only queries.
Useful for querying main table fields and child table fields.

Command Syntax

frappe.get_all(doctype, filters=None, fields=None, limit=None, order_by=None)

Parameters & Options:

Parameter	Type	Description
doctype	string	Name of the DocType to fetch records from.
filters	dict/list	List of specified fields to fetch
limit	int	Limits number of results. Optional.
order_by	string	Sort order (e.g., “creation desc”). Optional.

Common Pattern or Use Cases

la_orders = frappe.get_all(
    'Sales Order',
    filters={'customer': 'ABB AG'},
    fields=['name', 'transaction_date'],
    order_by='transaction_date desc',
    limit=5
)

# Get customer from current document
l_customer_name = doc.customer  # e.g., "ABB AG"

# Fetch Sales Orders with fields from main and child tables
la_sales_orders = frappe.get_list(
    "Sales Order",
    filters={"customer": l_customer_name},
    fields=[
        "name",
        "customer",
        "territory",
        # Sales Order Item (Child Table)
        "`tabSales Order Item`.item_code",
        "`tabSales Order Item`.qty",
        "`tabSales Order Item`.rate"
    ]
    order_by="transaction_date desc",
    limit=10
)

# Display each Sales Order with child item details
for ld_so in la_sales_orders:
    frappe.msgprint(f"""
        SO: {ld_so.name} | Customer: {ld_so.customer}
        Item: {ld_so.item_code} | Qty: {ld_so.qty} | Rate: {ld_so.rate}
    """)

Sample Output:

[{'name': 'SAL-ORD-2025-00014', 'transaction_date': datetime.date(2025, 5, 29)},
{'name': 'SAL-ORD-2025-00010', 'transaction_date': datetime.date(2025, 2, 18)},
{'name': 'SAL-ORD-2025-00011', 'transaction_date': datetime.date(2025, 2, 18)},
{'name': 'SAL-ORD-2025-00008', 'transaction_date': datetime.date(2025, 2, 5)},
{'name': 'SAL-ORD-2025-00007', 'transaction_date': datetime.date(2025, 2, 4)}]

Using `frappe.get_list` – Fetch Records from a Doctype (Server Script)

Retrieves a list of records from a specified doctype.
Supports filtering, sorting, field selection, and limits.
Commonly used in server scripts to extract data based on conditions.

Command Syntax

frappe.get_list(doctype, filters=None, fields=None, order_by=None, limit=None)

Parameters & Options:

Parameter	Type	Description
doctype	string	Name of the DocType to fetch records from.
filters	dict/list	List of specified fields to fetch
limit	int	Limits number of results. Optional.
order_by	string	Sort order (e.g., “creation desc”). Optional.

Common Pattern or Use Cases

# Get customer from current document
l_customer_name = doc.customer # l_customer_name = "ABB AG"

# Fetch Sales Orders for this customer
la_sales_orders = frappe.get_list(
    "Sales Order",
    filters={"customer": l_customer_name},
    fields=["name", "transaction_date", "grand_total"],
    order_by="transaction_date desc"
)

# Display each Sales Order
for ld_so in la_sales_orders:
    frappe.msgprint(f"Sales Order: {ld_so.name} | Date: {ld_so.transaction_date} | Total: ₹{ld_so.grand_total}")

Sample Output:

Sales Order: SAL-ORD-2024-0003 | Date: 2024-12-01 | Total: ₹75,000
Sales Order: SAL-ORD-2024-0022 | Date: 2024-10-15 | Total: ₹52,000
Sales Order: SAL-ORD-2025-0001 | Date: 2025-08-30 | Total: ₹19,500

frappe.get_all vs frappe.get_list

frappe.get_all	frappe.get_list
Faster; optimized for raw data access	Slightly slower due to permission and hook handling
Does not check permissions by default	Checks user permissions by default
Skips `get_list` hooks	Runs `get_list` hooks if defined
Only fetches database (DocType) fields	Can fetch custom fields and computed properties
Cannot access child tables or property setters	Can access child tables and custom properties
Best for internal scripts and background jobs	Best for user-facing features and API responses
Supports filters, fields, limit, and order_by	Supports filters, fields, limit, and order_by
Use `ignore_permissions=True` to override access	Automatically respects permissions
Does not load DocType metadata	Loads and applies DocType metadata
Lightweight and fast	More feature-rich and secure

Using `doc.save()` – Save a Document on the Server Side

Saves the document to the database.
Triggers validations and standard lifecycle events like before_save, validate, on_update, and after_save.

Command Syntax

doc.save()

Common Pattern or Use Cases

# Create and save a new document
ld_sales_order = frappe.new_doc("Sales Order")
ld_sales_order.customer = "Test Customer"
ld_sales_order.append("items", {
    "item_code": "DTTHZ2N/1000/22/440/6/95",
    "qty": 2
})
ld_sales_order.save()

Sample Output:

{
  "name": "SO-0004",
  "doctype": "Sales Order",
  "customer": "Test Customer",
  "delivery_date": "2025-06-20",
  "items": [
    {
      "item_code": "DTTHZ2N/1000/22/440/6/95",
      "qty": 2,
      "doctype": "Sales Order Item",
      "parent": "SO-0004",
      "parenttype": "Sales Order",
      "parentfield": "items"
    }
  ]
}

Best Practice (doc.save())

Avoid This	Why It Matters
`doc.save(ignore_permissions=True)`	It skips permission checks. This can cause security issues. Use it only when really needed.
Calling `doc.save()` inside a loop	It runs validations and writes to the database many times. This makes the code slow. Save once after the loop.

Using `doc.insert()` – Insert a New Document into the Database

Inserts a brand-new document into the database.
Used only for new records (not for updates).
Triggers standard lifecycle events like before_insert, validate, and after_insert.

Command Syntax

doc.insert()

Common Pattern or Use Cases

ld_customer = frappe.new_doc("Customer")
ld_customer.customer_name = "Test User"
ld_customer.customer_group = "Commercial"
ld_customer.territory = "India"
ld_customer.insert()

Sample Output:

{
  "name": "TEST USER",
  "doctype": "Customer",
  "customer_name": "Test User",
  "customer_group": "Commercial",
  "territory": "India",
}

Doctype’s MetaData

use get_meta to get specific Doctype’s information along with the custom field and property setter

Basic Syntax This method can only be used on Server Side

frappe.get_meta('<doctype_name>')

Common Use Cases

ld_ToDo_meta = frappe.get_meta("ToDo")
frappe.msgprint(str(ld_ToDo_meta.fields)) #printing the meta information of the fields

#Note: str() should be used to flaten the object, otherwise it will be printed as [Object][Object]

Sample Output

{
  "message": [
    {
      "name": "jv5ncgrirp",
      "docstatus": 0,
      "parent": "ToDo",
      "parentfield": "fields",
      "parenttype": "DocType",
      "idx": 1,
      "fieldname": "description_and_status",
      "fieldtype": "Section Break",
      "hidden": 0,
      .......},
      {
      "name": "jv511449u4",
      "docstatus": 0,
      "parent": "ToDo",
      "parentfield": "fields",
      "parenttype": "DocType",
      "idx": 2,
      "fieldname": "status",
      "label": "Status",
      "fieldtype": "Select",
      "options": "Open\nClosed\nCancelled",
      ....},
      ....
      ]}

CPQ CheatSheet

Setting a watch flag for a field

In client script you use fieldName(frm) to implement onChange of specific field. similarly, you can achieve the same in vue js using watch() Note: only use it on core, not on CRM Form Script

Basic Syntax

watch(fieldName, (NewValue, OldValue) =>{
//your logic
}
{ immediate: false } //to avoid initial undefined error onmount
)

Common Use Cases

On Change of tabs from Activity to Note,

watch(tabs, (CurrentTab, PreviousTab) => {
    //using watch we can access previous and current value of the field
    console.log("previous selected tab", PreviousTab)
    console.log("current selected tab", CurrentTab)
   }
   {immediate: false}
)

Sample Output

previous selected tab Activity
current selected tab Note

Custom Button in CPQ

use CRM Form Script (client script for CPQ) to add custom button in the both ListView or Individual View

Pre-requisite Go to CRM Form Script, create a new CRM Form Script with Name “Custom Button”, Doctype: “CRM Deal”, Apply To: “Form” and enable the script

Basic Syntax

action:[{"label": <label>, "onClick": () => {//your logic}
}]

Common Use Cases

Create a View Quotation button on Deal

function setupForm({ doc }) {
   return {
action:[{"label": "View Quotation", "onClick": () => {console.log("The button "View Quotation" is clicked")}
}]
}
}

Sample Output

Open the Existing Deal Document, you will see the “View Quotation” button at top right corner
On clicking the “View Quotation” button

//in browser console
The button "View Quotation" is clicked

Navigating pages using router

To navigate between pages like from Deal to Quotation in CPQ using a Frappe form script, you can use router() which is similar to set_route() in frappe

Pre-requisite Include the router param in the setupForm function

Basic Syntax

router.push({"name": <doctype_name>, "params": {"name": <id>}
})

Common Use Cases

navigate to the quotation created for the Specific Deal (ex: CRM-DEAL-0003)

 function setupForm({ doc, router }) {
   return {
action[{
"label": "View Quotation",
"onClick": () => {
    router.push({"name": "Quotation", "params": {"name": doc.custom_quotation_id}
    })
   }
}]
}
}

Sample Output On clicking the View Quotation button in the CRM-DEAL-0003 will take you to the Quotation

ref in Vue js

Use ref() to create a value, where Vue wraps it in a reactive object so it can track changes and trigger updates in the UI when used in templates.

Pre-requisite

import { ref } from 'vue'

Basic Syntax

ref(<intial_value>)
//`intial_value` can be any type: number, string, boolean, array, object, etc.

**Common Use Cases **

<template>
<Button
  :label="__('Create')"
  :loading="IsLoading" //When you use a `ref` variable in the template, Vue automatically unwraps `.value`, so you can use it directly.
  @click="fnHandleClick" />
</template>
<script setup>
const IsLoading = ref(false)
function fnHandleClick(){
  IsLoading.value = true  //To access or update it: use `.value`
  .....
  //after successfull created
  IsLoading.value = false
}
</script>

Sample Output When you clicked the “Create” button an spinner animation appear, after successfully creation, the button come back to normal

reactive in Vue.js

reactive() makes an object “watchable” so Vue knows when its data changes.
the difference between ref() and reactive() is that reactive only work with object or array, so you can’t use it for single primitive like reactive(5) or reactive(false)

Pre-requisite

import { reactive } from 'vue'

Basic Syntax

reactive({
  "name":"",
  "items":[]
  })

**Common Use Cases **

<template>
<FormControl
  :label="__('Design Template')"
  type="text"
  :placeholder="design_template"
  @change="(value)=> fnHandleUpdate("design_template", value)"
  />
</template>
<script setup>
const Design = reactive({"design_template":"", "direct_material": ""})
function fnHandleUpdate(iField, iValue){
  Design[iField] = iValue
  console.log(`${iField} is set to ${iValue}`)
}
</script>

Sample Output

Design Template is set to Step Up

Frappe Resource API

createResource() from frappe-ui is an build in reactive object that is used for async data fetching and processing with build in loading state, cache, error handling and watcher Pre-requisite

import { createResource } from 'frappe-ui'

Basic Syntax

createResource({
  url: <method_path>,
  params: {<filters, fields>},
  cache: ['<cache_name>', <variable_of_createResouce>],
  auto: true,
  onSuccess(data){}, //on successful response
  transform(data){}, //transform data before setting it
  onError(error){}, //error can occur from failed request and validate function
  makeParams(){}, //generate params from function
  validate(params){}, //validate parameters before making request
})

**Common Use Cases **

const LaFieldLayout = createResource({
  url: "crm.fcrm.doctype.crm_fields_layout.crm_fields_layout.get_fields_layout",
  params:{ doctype: "Item", type: "Quick Entry"},
  cache: ["tabs", LaFieldLayout],
  auto: true,
  onSuccess(iaTabs){
    //the return structure of this endpoint will be like
    //[{secions:[columns:[fields:[fieldName: "", fieldType: ""]]]}, {}]
    iaTabs.forEach((idTab) => {
      idTab.sections.forEach((idSection) => {
        idSection.columns.forEach((idColumn) => {
          idColumn.fields.forEach((idField) => {
            if(idField.fieldType == "Table"){
              console.log("Field name", idField.fieldName)
            }
          })
        })
      })
    })
  }
})

Sample Output

Field name Item Attribute

Classes and Objects

Constructor

A constructor is a special method in a class that gets called automatically when a new instance of the class is created. It is used to initialize the object with values or set up initial logic.Basic Syntax:

class ClassName {
    constructor(parameter1: Type, parameter2: Type) {
        // Initialization code here
    }
}

You can access the constructor via the new keyword:

const obj = new  ClassName(value1, value2);

Use Case We use constructors in base and derived classes to pass and initialize shared data like action and actionData.

class clActionOnLoad extends clAction {
    constructor(iAction: string, iaActionData: TTactionsData) {
        super(iAction, iaActionData); // Calls the constructor of the base class
    }
    // overrides and method calls
}

WHY

You pass data like action and actionData to the base class once.
You avoid repeating initialization logic in every subclass.
Subclasses can still add their own logic after calling super().

Interface

An interface is a syntactic contract that defines the structure of an object or class. It ensures that a class or object adheres to a particular shape by specifying what properties and methods it must have.Basic Syntax:

interface InterfaceName {
    propertyName: type;
    methodName(): returnType;
}

Use Case: We use the interface in the types.ts file to define the structure that any class or object must follow. In this case, the ifActionHandler interface acts as a contract for all action handlers, ensuring they have the necessary properties and methods.

interface ifActionHandler {
    action: string;
    actionData: TTactionsData;
    actionRow: TactionData;
    executeAction(): void;
    checkFieldValue(): void;
    checkFieldProperties(): void;
    dataType: ifDataType;
}

Use this interface in an abstract class:

abstract class abstract class clAction implements ifActionHandler {
    // Must implement all properties and methods from the interface
}

WHY:

By using the interface in the types.ts, you define a standard structure for all actions.
Every class that implements this interface will be forced to follow that structure.
This helps in maintaining consistency, improving type safety, and enabling scalable code architecture.

Factory class

Use a factory class when you need to dynamically create instances of different classes based on a runtime condition (e.g., a string key), without hardcoding class instantiations.Use Case: Dynamically create and return the correct clAction subclass based on the action type string at runtime (e.g., "Onload", "Add Row", etc.).

// Factory class to create action instances dynamically based on action type
class clActionFactory {
  private static actionsMap: {
    [key: string]: new (iAction: string, iaActionData: TTactionsData) => clAction
  } = {
    "Onload": clActionOnLoad,
    "On Change": clActionOnChange,
    "On Tab": clActionOnTab,
    "Add Row": clActionAddRow,
    "Edit Details": clActionEditDetails,
    "Expand Section": clActionExpandSection,
  };
  // Factory method to return the correct action class instance at runtime
  static createAction(
    type: string,                         // Action type string (e.g., "Add Row")
    iAction: string,
    iaActionData: TTactionsData
  ): clAction {
    const ActionClass = this.actionsMap[type];
    if (!ActionClass) {
      throw new Error(`Action type '${type}' is not registered.`);
    }
    // Return a new instance of the action class
    return new ActionClass(iAction, iaActionData);
  }
}

Easily create instances of different classes based on a string key without hardcoding logic.
Easily register new actions by adding to actionsMap
Keeps instantiation logic centralized.

PRISM - Script

Client Side

Using ”frappe.call” with Various Built-in Methods

Using frappe.call in Frappe Javascript

Using the frappe.client.get method with frappe.call – Fetch Full Document

Using frappe.client.get_list with frappe.call – Fetch Filtered List of Documents with Specific Fields

Using the frappe.client.get_value method with frappe.call – Fetch Specific field

Using the frappe.db.get_value method – Fetch Specific Field(s) without fetching full document

Using frm.call – Call Server-Side API Method from Client-Side

Using frappe.set_intro – Display an Introductory Message in a Form

Using frappe.df.set_property – Set Properties Dynamically on DocField in a Form

Using frm.set_value – Set a Field Value in the Form

Using add_fetch – Auto Fetch Field Value from Linked Doctype

Using get_query – Filter Link Field Options Dynamically (Field-Level)

Using set_query – Filter Link Field Options Dynamically (Global or Field-Level)

Common Syntax

Using frappe.model.with_doc – Access a Full Document in the Client Script

Using frappe.model.set_value – Set the Value of a Field in a Child Doctype Row

Command Syntax

Using HTML Templates in JavaScript – Render Dynamic HTML with JS

Command Syntax

JavaScript Array Methods

1. forEach() – Loop through Sales Order Items

2. map() – Transform Sales Order Items

3.find() – Find First Matching Item

4. filter() – Filter Matching Items

5. reduce() – Calculate Total Value

JavaScript Child Table

Accessing All Rows in a Child Table

Adding a New Row to Child Table

Accessing Specific Row by cdt and cdn

Modifying Child Table Field Properties

Clear or Set Options in a Field in Child Table

Get value of password field

Using frappe.client.get_list with frappe.call – For accessing the child table

Command Syntax

Parameters & Options

Common Patterns or Use Cases for (Child Table)

Server Side

frappe.get_doc in server side

Using frappe.get_all – Fetch Multiple Records from a Doctype

Using frappe.get_list – Fetch Records from a Doctype (Server Script)

frappe.get_all vs frappe.get_list

Using doc.save() – Save a Document on the Server Side

Using doc.insert() – Insert a New Document into the Database

Doctype’s MetaData

CPQ CheatSheet

Setting a watch flag for a field

Custom Button in CPQ

Navigating pages using router

ref in Vue js

reactive in Vue.js

Frappe Resource API

Classes and Objects

Constructor

Interface

Factory class

Using `frappe.call` in Frappe Javascript

Using the frappe.client.get method with `frappe.call` – Fetch Full Document

Using `frappe.client.get_list` with `frappe.call` – Fetch Filtered List of Documents with Specific Fields

Using the frappe.client.get_value method with `frappe.call` – Fetch Specific field

Using `frm.call` – Call Server-Side API Method from Client-Side

Using `frm.set_value` – Set a Field Value in the Form

Using `add_fetch` – Auto Fetch Field Value from Linked Doctype

Using `get_query` – Filter Link Field Options Dynamically (Field-Level)

Using `set_query` – Filter Link Field Options Dynamically (Global or Field-Level)

Using `frappe.model.with_doc` – Access a Full Document in the Client Script

Using `frappe.model.set_value` – Set the Value of a Field in a Child Doctype Row

Using `frappe.client.get_list` with `frappe.call` – For accessing the child table

Using `frappe.get_all` – Fetch Multiple Records from a Doctype

Using `frappe.get_list` – Fetch Records from a Doctype (Server Script)

Using `doc.save()` – Save a Document on the Server Side

Using `doc.insert()` – Insert a New Document into the Database
